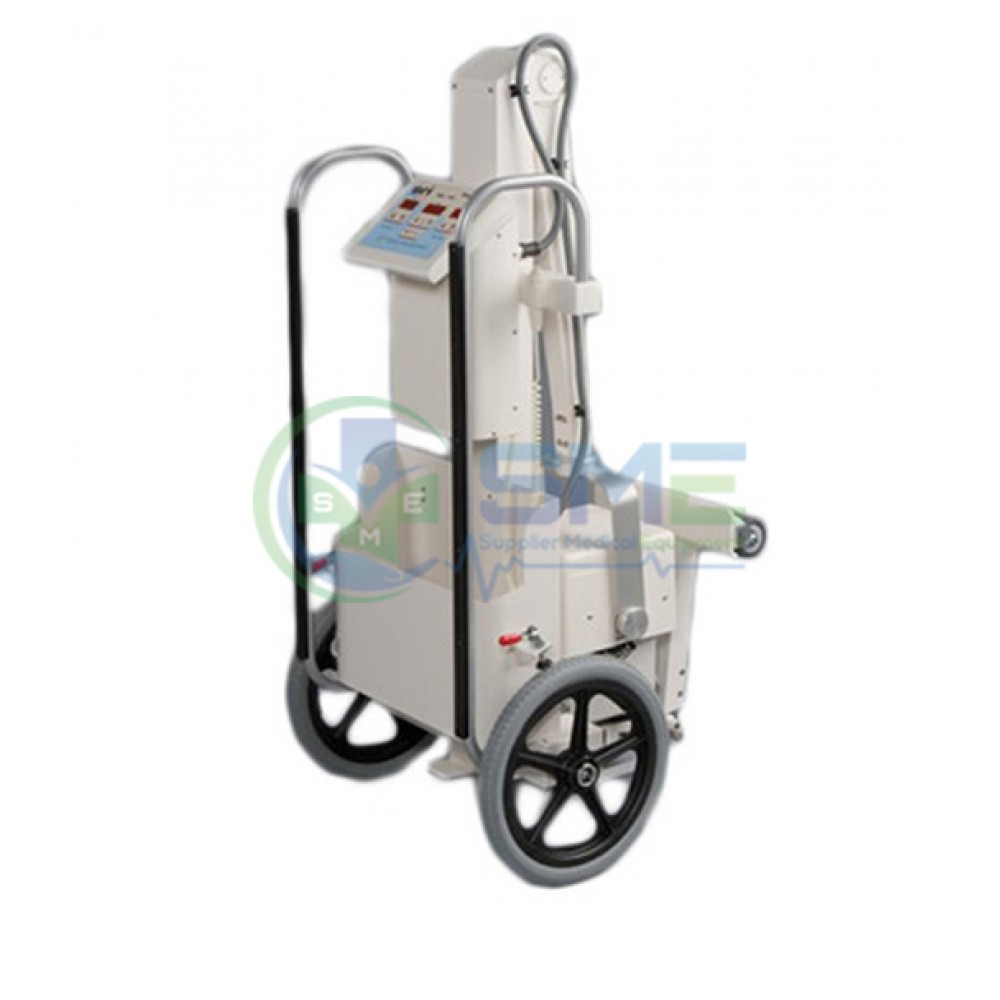

Source-Ray PowerMax 1260 Film based Portable X-ray
Product Description
The
model PowerMax 1260 provides high power, state of the art technology,
system reliability, and low maintenance all in a small footprint,
lightweight package.
Delivering the maximum mR/mAs, the PowerMax
1260 produces 3kW of power that provides hospital quality imaging
performed anywhere, anytime a portable X-Ray System is transported to a
patient.
The PowerMax 1260 is a 120kV, 15-60mA system. With 3kW
across the full range, it can reduce exposure times on difficult
radiographic anatomical views, thereby minimizing patient motion
problems and enhancing image quality.
The PowerMax 1260 is designed with agility in mind.
The
PowerMax 1260 has a small footprint, lightweight 100 lb. system, that
is user friendly and easy for the X-Ray technician to handle and
transport.
The PowerMax 1260's unique folding design allows it
to be stored easily. And transported easily thru standard doors and up
and down stairs.
A built in Cassette storage area can accommodate up to seven standard 14"x 17" radiographic film cassettes.
The PowerMax 1260 is the number one power to weight ratio portable X-Ray system on the market today.
The
PowerMax 1260 is designed for high reliability and the durability
required for the Diagnostic Outreach Market, that will assure maximum
up-time performance and low maintenance.
The PowerMax 1260 is designed with a intuitive user interface, for care free technique setting and status indication.
The PowerMax 1260 employs a High Frequency inverter for Constant Potential X-Ray tube voltage.
Automatic voltage regulation gives the
PowerMax 1260 the ability to work over line voltages from 115vac to 240vac.
Finally
there is a "Line-Powered" High Frequency Portable X-Ray System on
the market that addresses clinical image quality and lightweight
portability.
System Specs:
- 3kW constant output across entire KV range 120kV/ 60 mA, 200 mAs.
- Universal input/ Power factor correction.
- Low/ Hi mA stations
- microprocessor controlled
- Folding travel stand
- Collimare collimator with laser cross hairs.
- Integral cassette storage box.
